Baja Designs 447664UP XL Linkable Led Bar Jeep Wrangler JL/Gladiator 18-22
Product images
+25
points
points
| Light Color | White |
| Watts | 208 |
| Series | XL Linkable |
| Note | *Please note that the Jeep Gladiator Mojave is not compatible with this kit* |
|
Fitment
Show all |
2018||Jeep||Wrangler JL, 2019||Jeep||Wrangler JL, 2020||Jeep||Wrangler JL, 2020||Jeep||Gladiator JT, 2021||Jeep||Gladiator JT, 2021||Jeep||Wrangler JL, 2022||Jeep||Wrangler JL, 2022||Jeep||Gladiator JT
|
| Brand | Baja |
| Lumens | 25200 |
| Box Height | 8.4 in |
(!)
(PATENT PENDING)
Full adjustment. Total Performance. This XL Linkable kit is designed for the JL and JT Jeep platforms. This LED roof bar kit gives off-roaders a high performance, completely customizable solution to drastically improve the looks and performance of their Jeep.
This kit includes 8 XL Sport LED Lights, aluminum XL Linkable Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
This kit includes an Upfitter Wiring harness for models with factory Upfitter switch provisions.
| Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color |
Specifications: Lumens: 25,200 Utilizing 32 LEDs Wattage/Amps: 208W / 16A LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof, Submersible to 9ft) IK10 Compliant (Mechanical Impact Testing) |

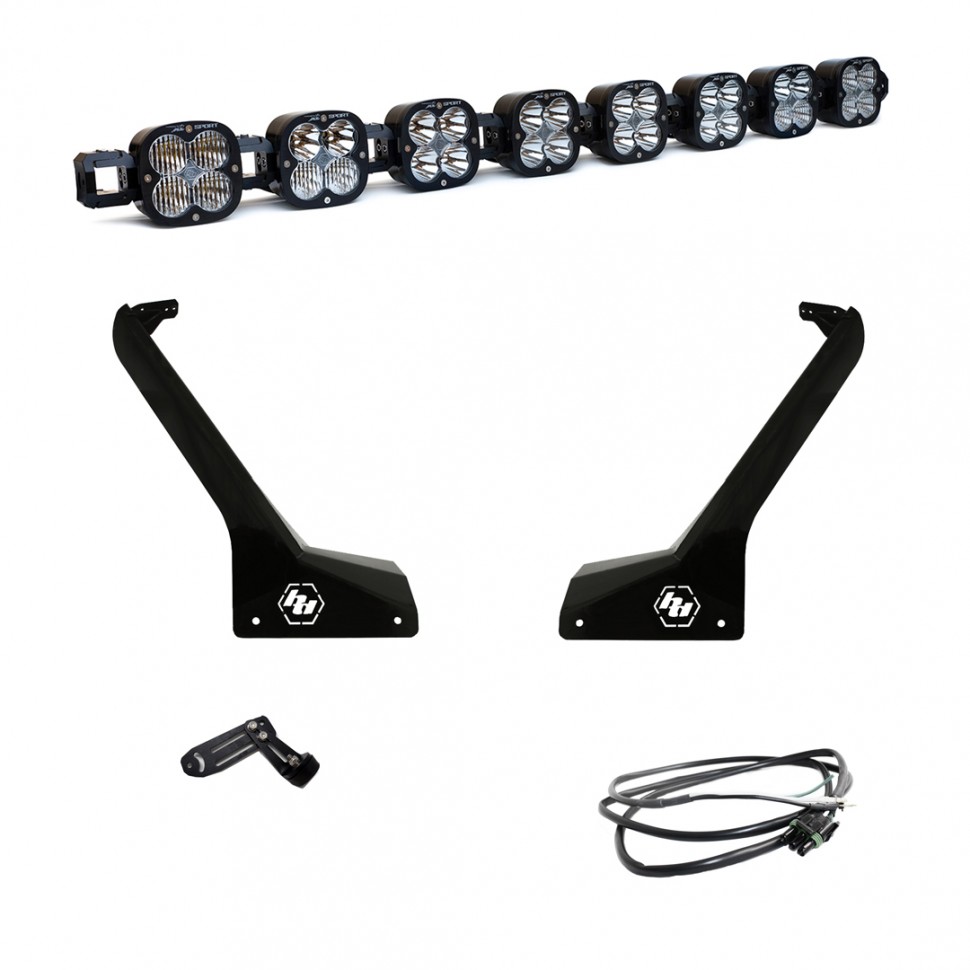

Includes:
- x4 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x8 XL Sport Rock Guards
- Pre-load kit
- Vehicle Specific Bracket
- Upfitter Harness
Application:
- Jeep JL
- Jeep JT
*Please note that the Jeep Gladiator Mojave is not compatible with this kit*

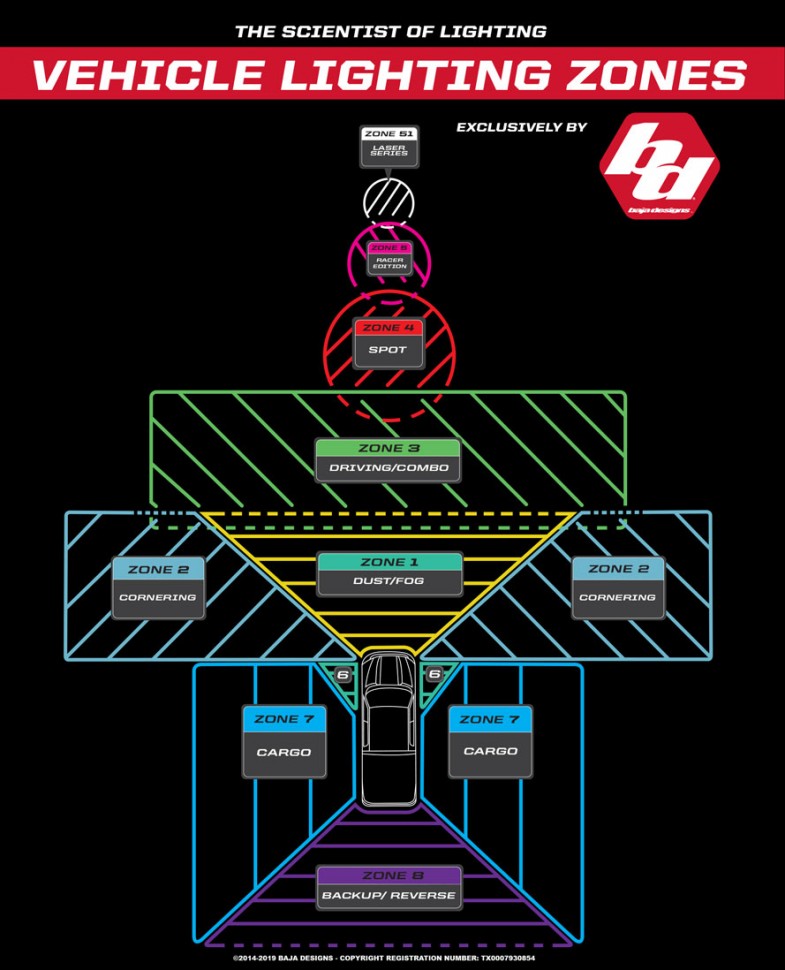

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Baja Designs 447664UP XL Linkable Led Bar Jeep Wrangler JL/Gladiator 18-22 - Features
| Light Color | White |
| Watts | 208 |
| Series | XL Linkable |
| Note | *Please note that the Jeep Gladiator Mojave is not compatible with this kit* |
|
Fitment
Show all |
2018||Jeep||Wrangler JL, 2019||Jeep||Wrangler JL, 2020||Jeep||Wrangler JL, 2020||Jeep||Gladiator JT, 2021||Jeep||Gladiator JT, 2021||Jeep||Wrangler JL, 2022||Jeep||Wrangler JL, 2022||Jeep||Gladiator JT
|
| Brand | Baja |
| Lumens | 25200 |
| Box Height | 8.4 in |
| Box Width | 8.7 in |
| Box Length | 64.5 in |
| Box Weight | 24.1 lbs |
| Color | White |
